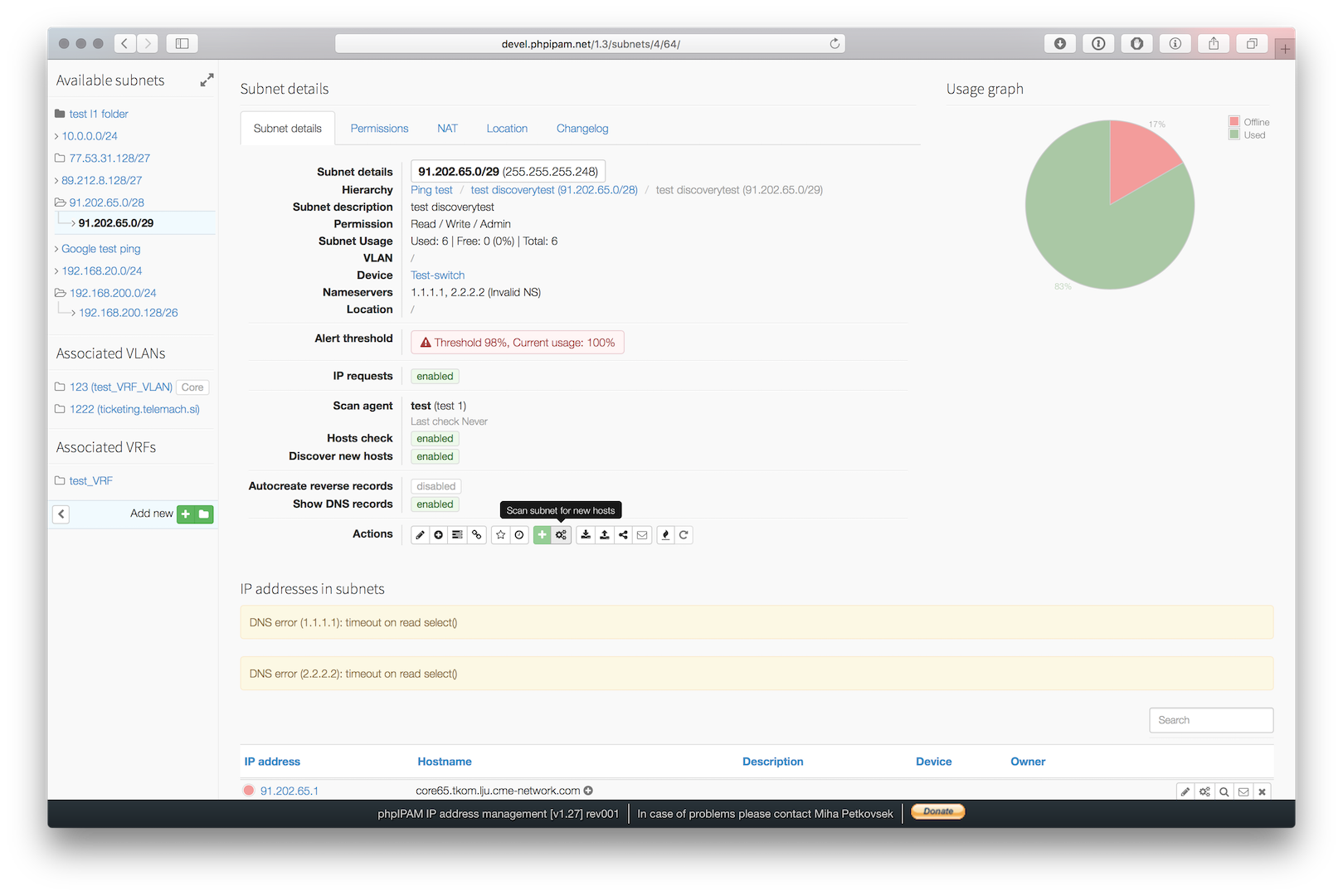

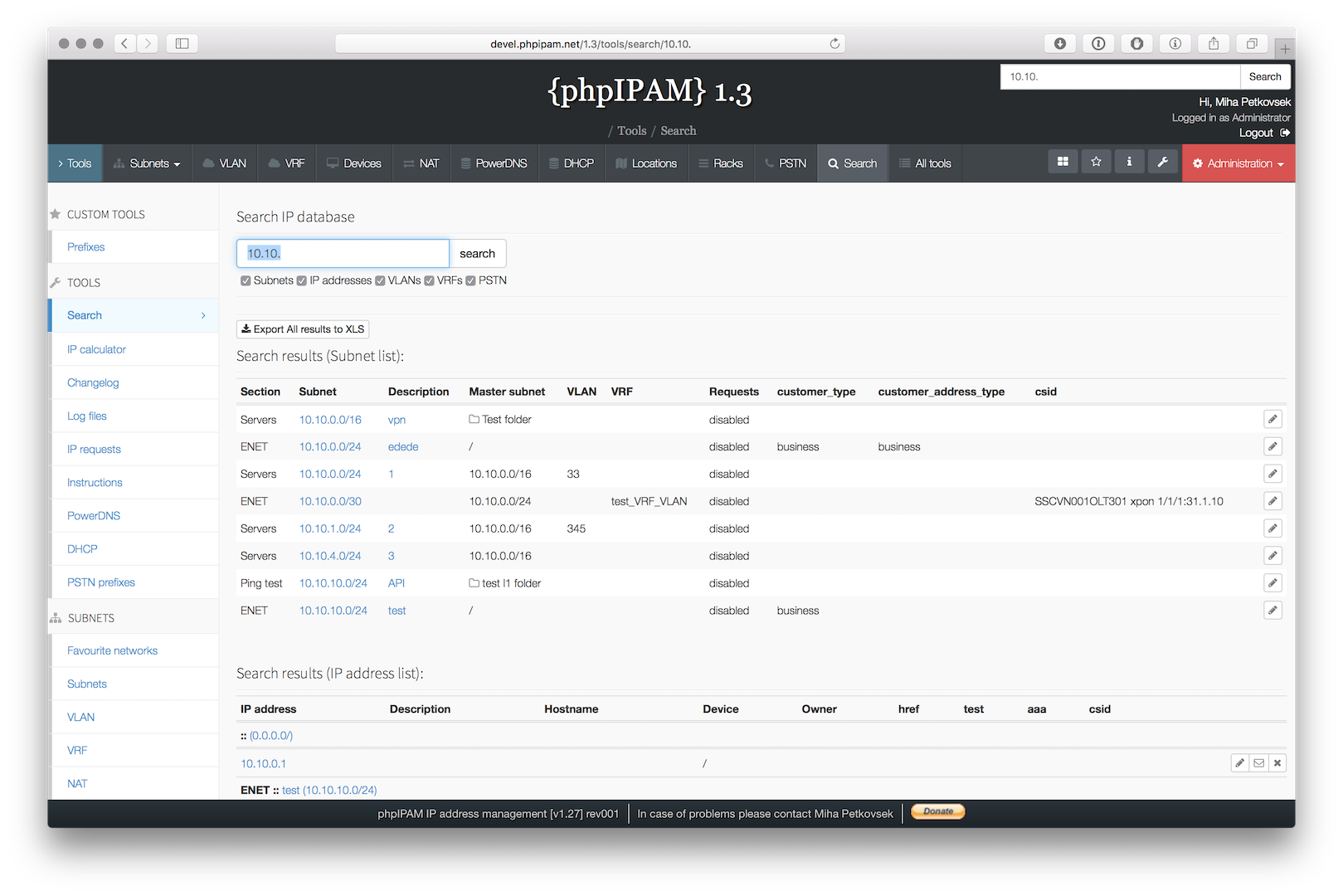

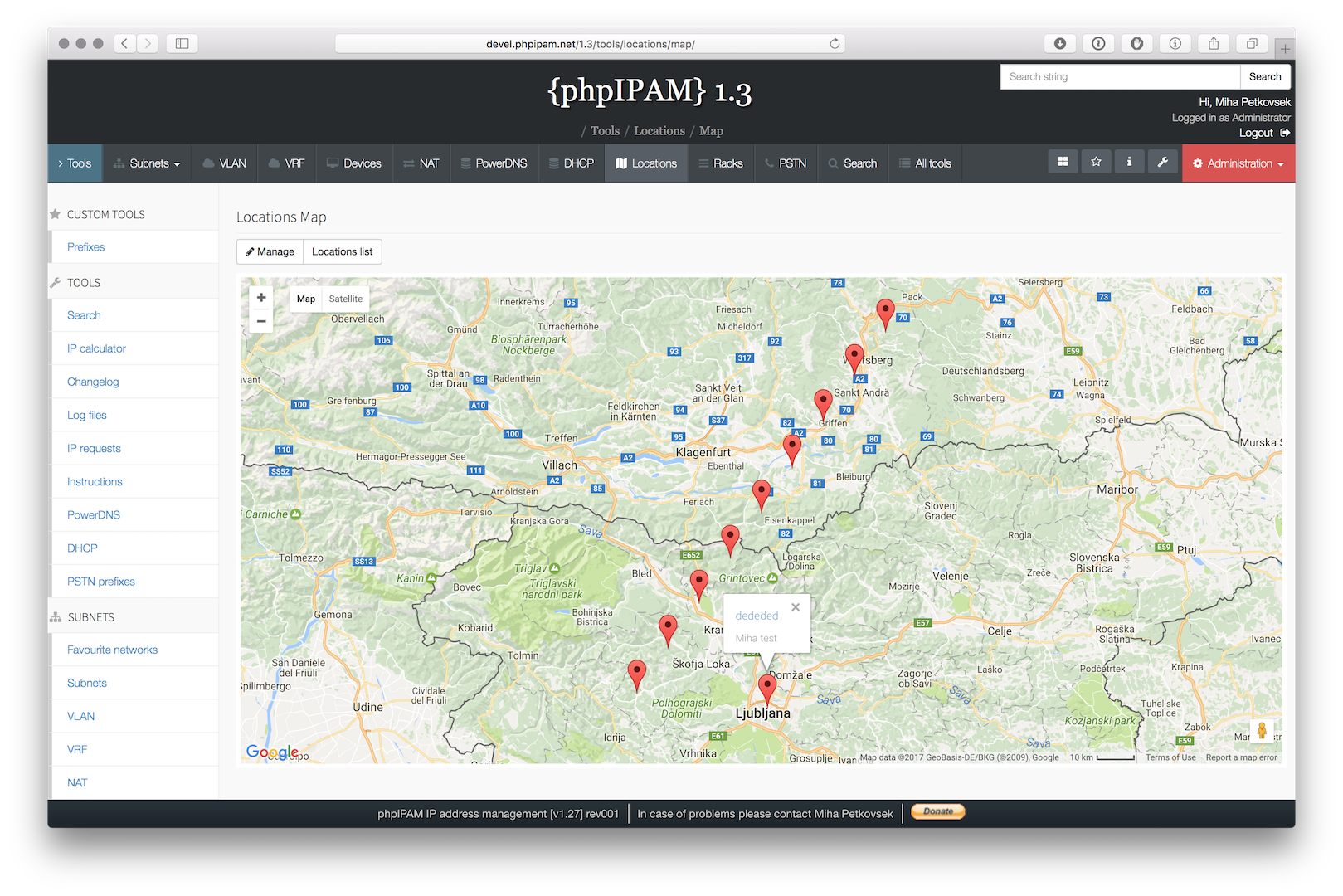

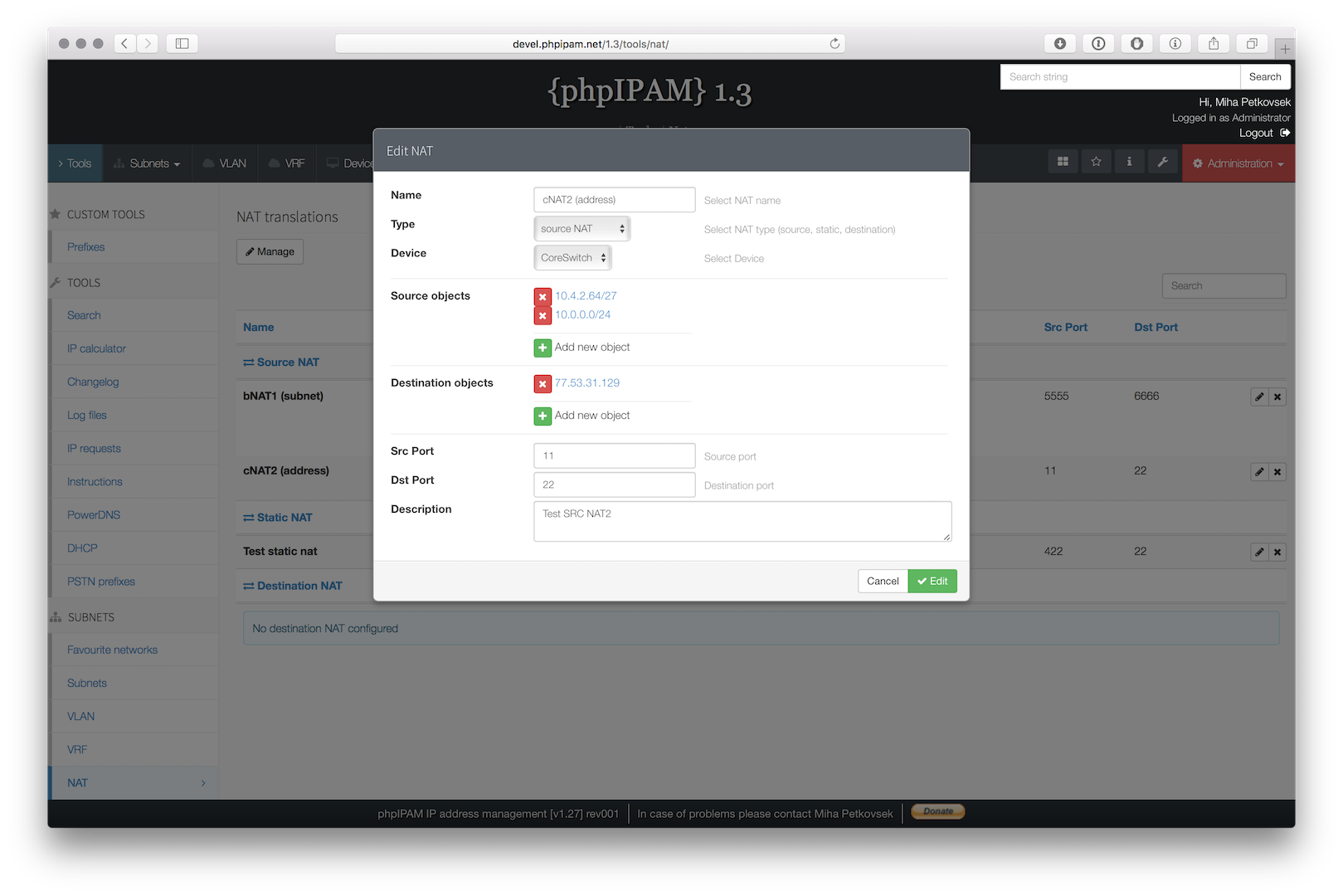

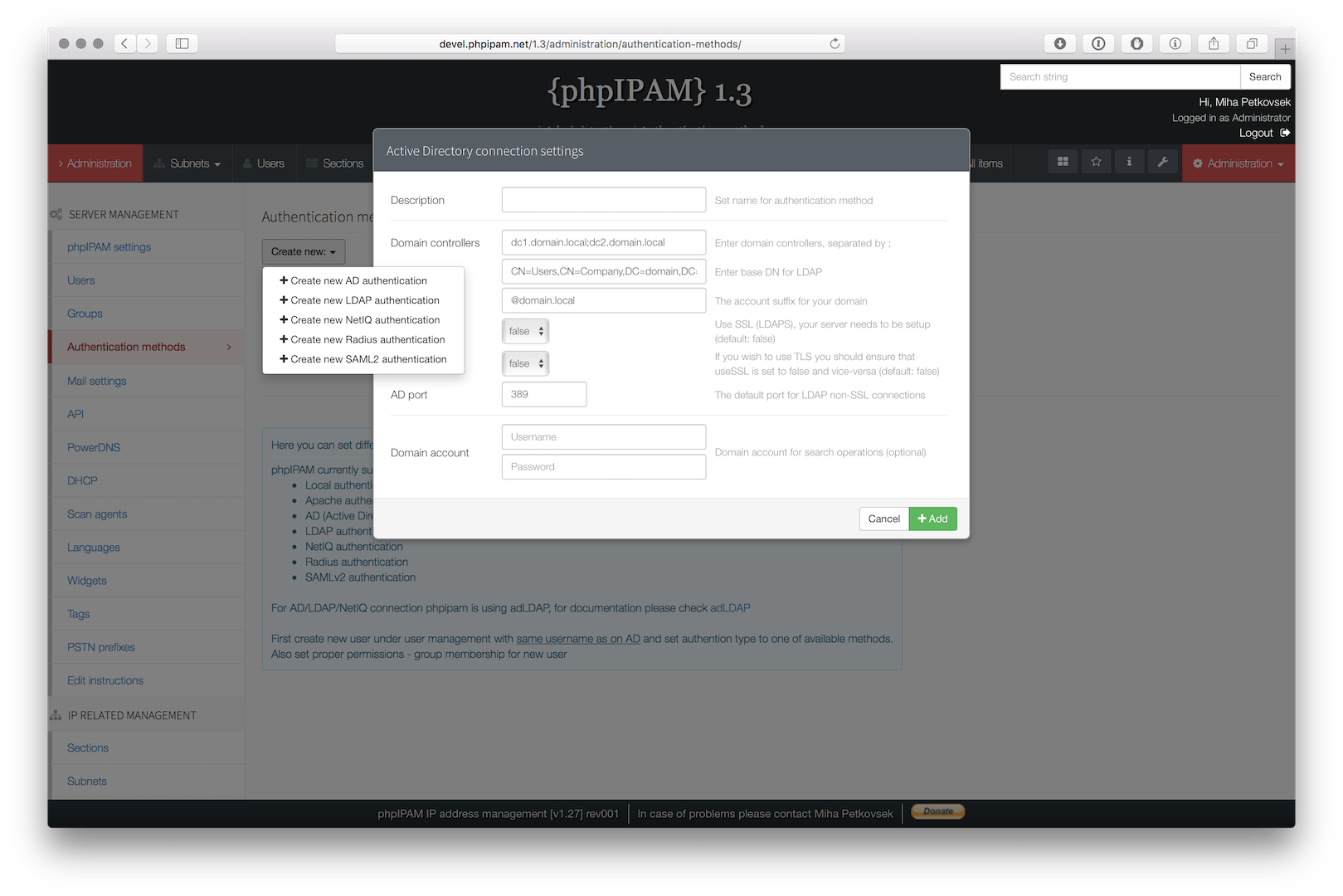

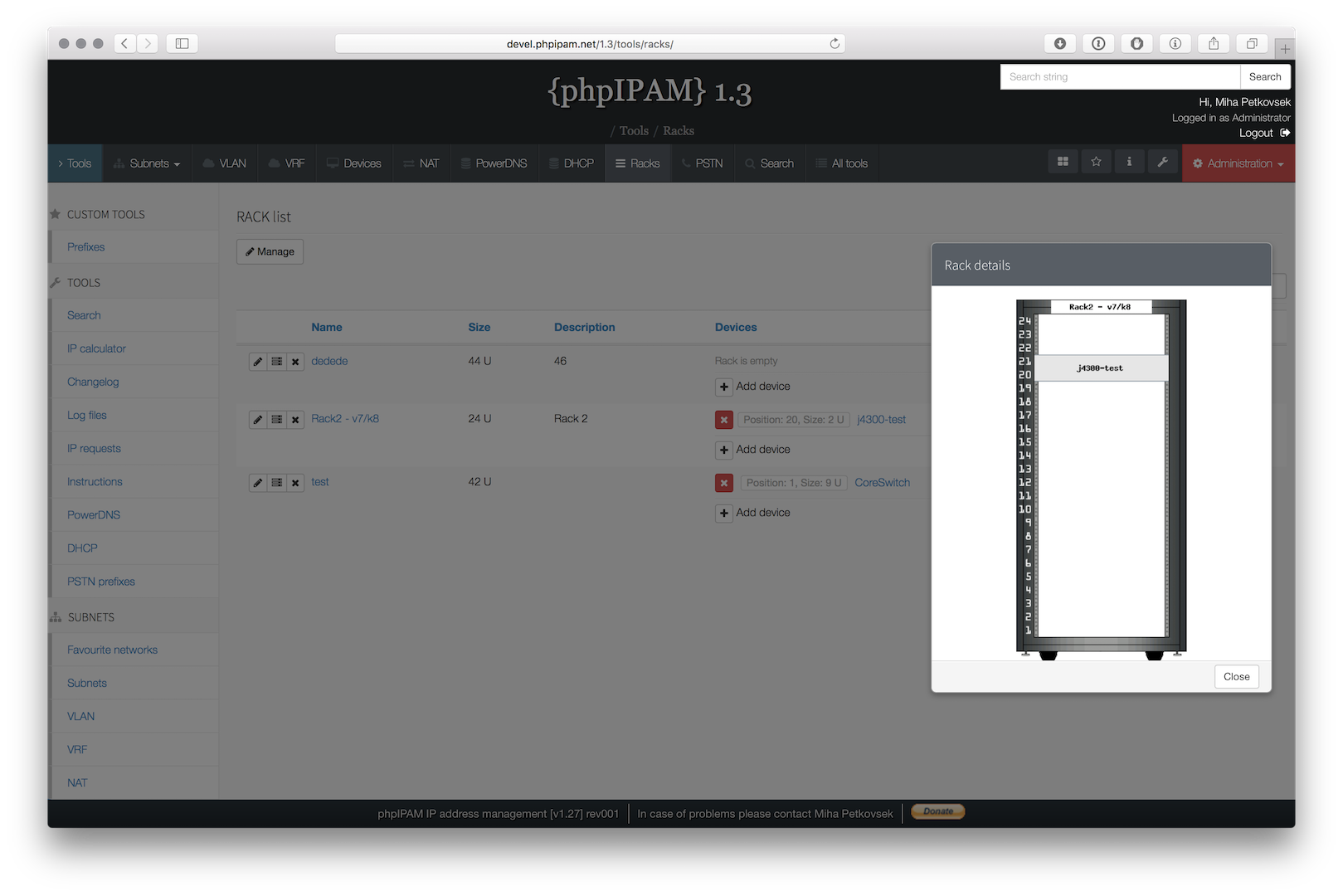

Screenshots

Screenshots

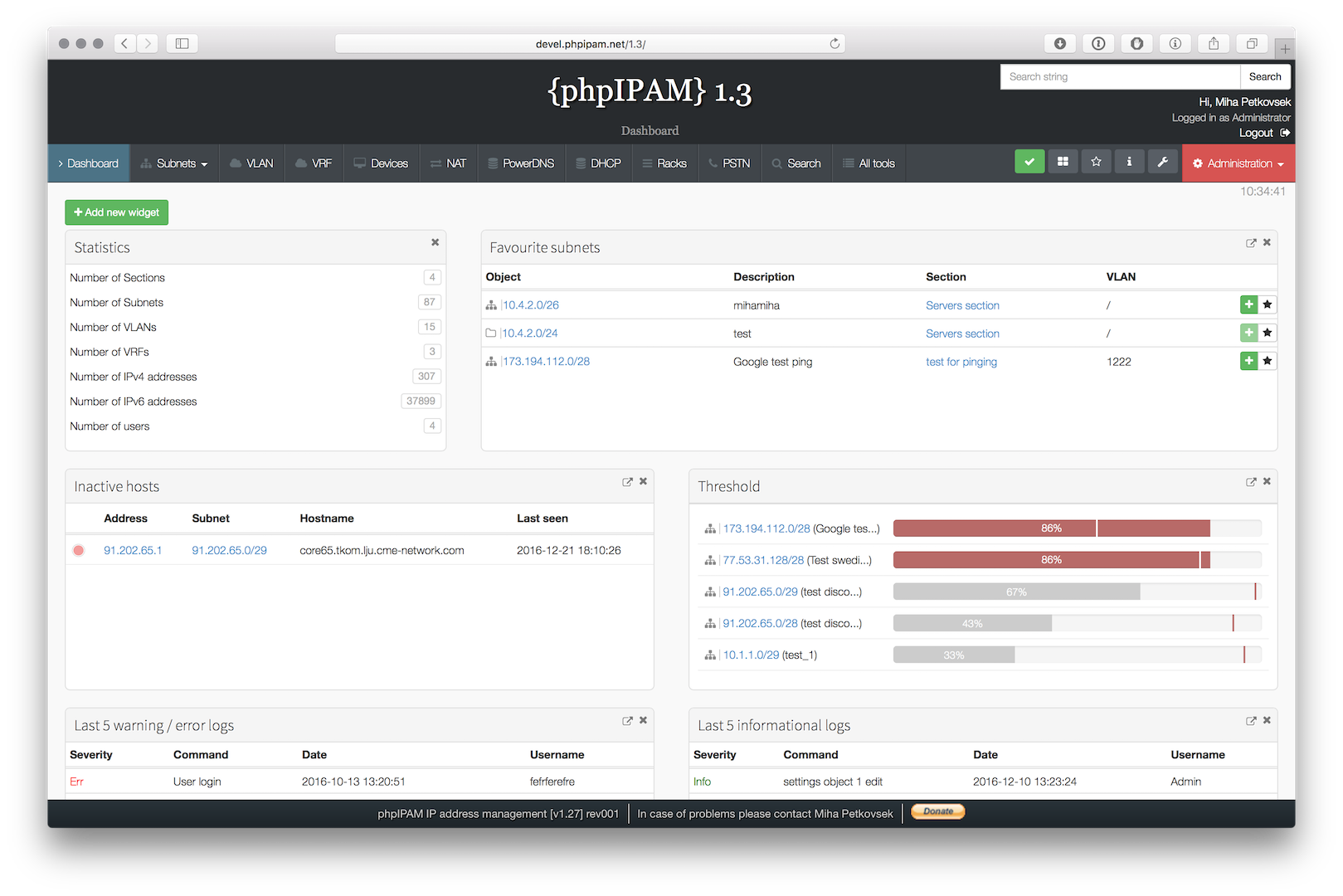

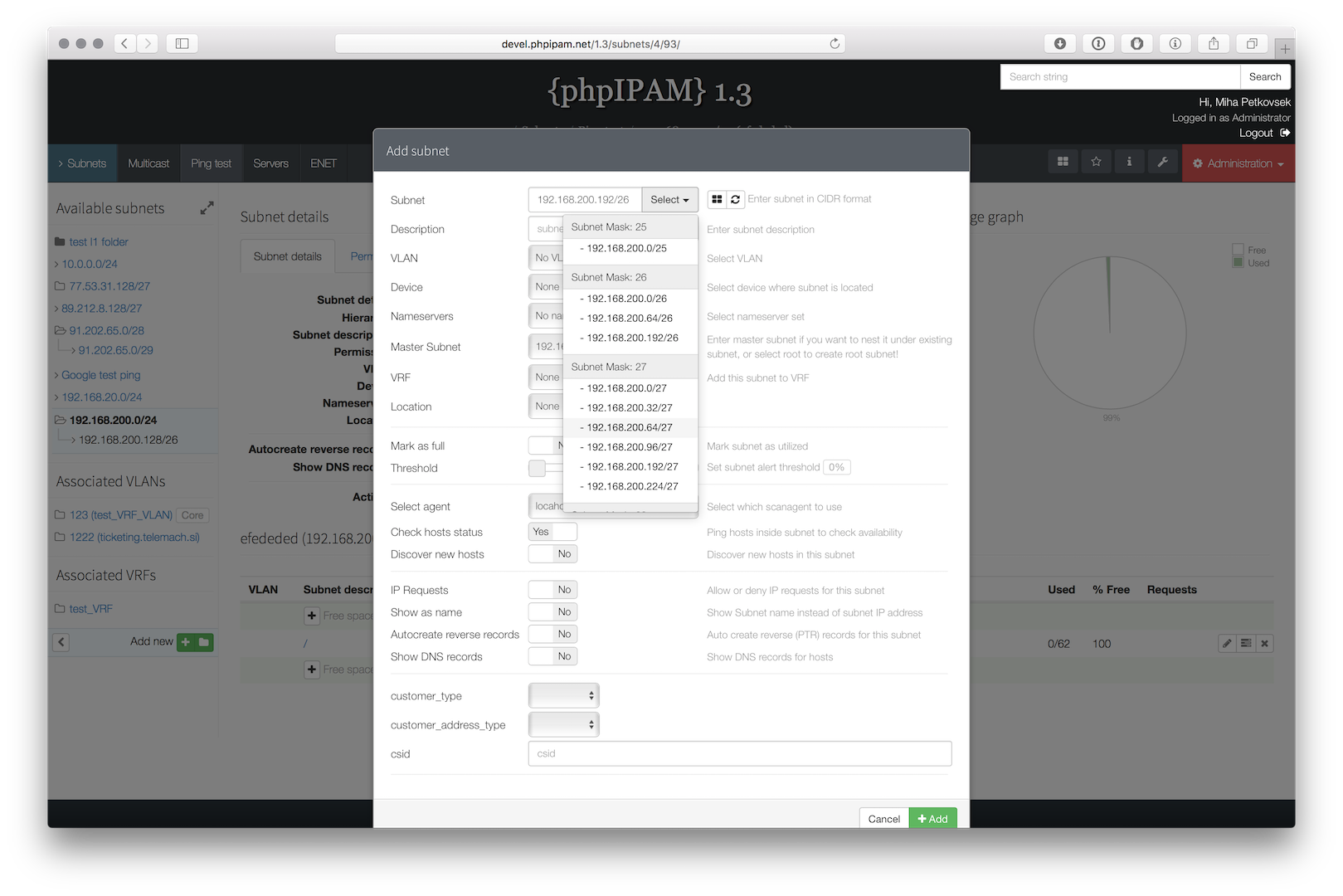

Some screenshots from latest release. You can see it in action and demo it on demo.phpipam.net.

Development releases

If you would like to test development releases of phpipam, you can use subversion to stay up to date!
svn checkout svn://svn.code.sf.net/p/phpipam/code/ phpipamdevel
Please note that possible DB changes will not be automatically updated and you have to do it manually. So look out for --- db change --- messages in commits, or check db/UPDATE-vesrion.db for changes being made in development releases. brm

phpipam version 1.0 released

Dear all, I am happy to announce new version of phpipam IP address management – version 1.0. Subnet details

New features, like changelog, favourite subnets, upgraded UI with bootstrap3 and other were introduced, and also lots of improvements and bug fixes are included. Most important are:

  • IP address changelog, subnet and section changelogs with full changelog under tools;
  • Favourite subnets for quick access;
  • Bootstrap 3 with UI enhancements;
  • Widgets can be reordered (dragged) directly on dashboard;
  • Mail settings can now be set on gui (localhost / smtp);

If you find phpIPAM useful for your company donations would be highly appreciated :)

You can demo it here: http://demo.phpipam.net/
You can download it on sourceforge site: phpipam-1.0.

Special thanks to all the people submitting bug reports, translators and feature testers!

Screenshots:

Full changelog for this release is:

New features:
----------------------------
+ IP address page with IP address details and IP history (Changelog);
+ IP address changelog, subnet and section changelogs with full changelog under tools;
+ Favourite subnets for quick access;
+ Adding subnets from free space with automatic mask provided;
+ Automatic database validity check after upgrading and automatic field/table fix under administration;
+ Automatic weekly check for new phpipam version;

Enhancements:
----------------------------
+ Bootstrap 3;
+ UI enhancements;
+ Improved views based on browser width;
+ Widget order can now be set;
+ Widgets can be reordered (dragged) directly on dashboard;
+ Subnet can now be splitted to max 256 new subnets (16 before);
+ Scan settings are moved to Administration;
+ Widget management has moved to administration, which allows creation of new widgets;
+ Improved ICMP error detection;
+ Mail settings can now be set on gui (localhost / smtp);
+ Popup windows are now draggable;
+ VLAN adding in the fly enhancements;
+ Master section now shows all subnets in subsections;
+ Tools > devices redone;
+ DeviceTypes can now be edited/set/added;
+ Ping subnet enhancements;
+ Custom field types are now defineable (int/varchar/date/datetime/text/bool/set);
+ Date and timepicker popups if type = date/datetime;
+ For `set` and boolean custom fields dropdown is presented that users can pick;

+ Favourite subnets widget;
+ IP requests widget;
+ Changelog widget;

Translations:
----------------------------
+ Added Brazil translation (Michel Braga Guimarães);

Bugfixes:
--------
+ UI fixes;
+ Fixed bug where last page of IP addresses was inaccessible;
+ IP address state change is now sent to all admins;
+ Fixed subnet displaying as 0.0.0.0/0 in details;
+ Fixed links to subnets form vlans and vrfs;
+ Fixed search result showing all folders if searched item is not IP address;
+ Fixed disapearing section when L2 section was selected as master section;
+ Fixed device ID showing in mail notification instead of hostname;
+ Fixed device ID showing in search results and export instead of hostname;
+ Fixed search for subnet name returned no results;
+ Fixed apostophe in IP address description throws SQL error for scan results and XLS import;
+ Fixed requester email gets cut if longer than 32 chars;
+ Fixed admin folder edit appearing as subnet;
+ Fixed missing device/port in import;
+ Fixed master section delete did not delete subsections and belonging subnets/ips;
+ Fixed online status was not updated when running Ping status scans;
+ Fixed Folder name not appearing when deleting folder;

brm

Automatic host availability check

From version 0.9 on there is a option to automatically check statuses of configured hosts for selected subnets, and I received some related questions about it, so here is a short description and guide for it.

Firstly, pcntl support for php cli is advised so phpipam can do parallel icmp checks, this greatly reduces time required for checking status. You can check if your installation is ok with following command:

php -m | grep pcntl

1.) Configure the parameters for pinging

You should set required parameters for pinging, etc ping path etc under

functions/scan/config-scan.php

You can get your ping path by invoking “whereis ping” in terminal.
You can also set some optional parameters in script itself

functions/scripts/pingCheck.php

Also, set the time parameters for status under Administration > IPAM settings (Ping status intervals), phpipam will set host as down/up based on this values.

2.) Select which networks to check

Now you have to select which subnets should scan for statuses for configured hosts. Go to edit subnet and check “Check hosts status”. This will tell the cron script to check the status of hosts inside this subnet.
ICMP check

3.) Add cron script

I suggest checking it per 15 minutes:

# update host statuses exery 15 minutes
*/15 * * * * /usr/local/bin/php /usr/local/www/phpipam/functions/scripts/pingCheck.php

Change the paths according to your installation of course :)

That should be it. I would advise to run the script manually for the first time to see if any errors are present.

brm

phpIPAM version 0.9 released

Dear all, I am happy to announce new version of phpipam IP address management – version 0.9. Subnet status
New features, like Support for ICMP network discovery, ICMP check IP status in demand, Compressed (grouped) DHCP IP ranges and other were introduced. Most important are:

  • Support for ICMP network discovery;
  • Cron script to check status for selected subnets/hosts with threading suport (pcntl php extension required)
  • ICMP check IP status in demand;
  • Added folders;
  • Compressed (grouped) DHCP IP ranges;
  • Added subsections;

Some instructions on how to setup ICMP scanning will follow.

If you find phpIPAM useful for your company donations would be highly appreciated :)

You can demo it here: http://demo.phpipam.net/
You can download it on sourceforge site: phpipam-0.9.

Special thanks to all the people submitting bug reports, translators and feature testers!

Screenshots:

Full changelog for this release is:

New features:
----------------------------
+ Support for ICMP network discovery;
+ Cron script to check status for selected subnets/hosts with threading suport (pcntl php extension required);
+ ICMP check IP status in demand;
+ Compressed (grouped) DHCP IP ranges;
+ API server version 0.1;
+ Option to show and group subnets by VLAN in subnets list;
+ Option to show and group subnets by VRF in subnets list;
+ Added subsections;
+ Added AD username search;
+ Added folders;

Enhancements:
----------------------------
+ Added error catching/displaying for ajax-loaded php scripts;
+ Added default language for login/requests display and new users;
+ Added direct links to different pages in IP address table;
+ Subnets can now be edited directly from nested subnets list;
+ When adding nested subnets default vlan/vrf is selected from parent;
+ Added Section ordering;
+ Added per/section subnet ordering (overrides dafault form settings);
+ Clicking on section now shows all subnets and belonging details;
+ If session timeouts after re-login last requested page will be opened;
+ Searh for IP address now returns also subnet, even if IP is not existing;
+ Per-user selection of widgets to display;
+ Added description and required field checkbox for custom IP/Subnet Fields;
+ Added custom device fields;
+ Mails are now sent through phpmailer;
+ Admin user cannot be deleted;

Translations:
----------------------------
+ Added French translation (Denis Darré);
+ Added Dutch translation (Michiel Visser);
+ Added German translation (Carsten Brückner);

Bugfixes:
----------------------------
+ Fixed wrong VLAN display in tools;
+ Fixed subnet/section links from VLANS if base not /;
+ Fixed warning in apache log on subnet editing if no VRFs are configured;
+ Fixed admin menu off-screen overflow;
+ Fixed firefox error when selectiong rights for section/subnets was not possible;
+ Fixed subnet description in Cyrillic problem;
+ Fixed errors on no permissions for user;
+ Fixed Inaccurate Free Space Calculation (and Chart);
+ Fixed VLAN permissions where VLAN was not displayed;

brm

phpIPAM version 0.8 released

Dear all, I am happy to announce new version of phpipam IP address management – version 0.8. Quite some bugs have been squashed and some new features introduced, like per-group permissions, support for translations, visual subnet displays and other: Permissions

  • New group and permission management;
  • Support for translations;
  • Subnet resizing;
  • Subnet splitting into smaller subnets;
  • Added free space display for nested subnets;
  • Added visual display of subnet usage per IP address;
  • Added truncate network option that deletes all IP addresses in subnet;
  • Added button the updates subnet with RIPE information;

You can demo it here: http://demo.phpipam.net/
You can download it on sourceforge site: phpipam-0.8.

Please note that IE8 is no longer supported!

Special thanks to all the people submitting bug reports, donors, translators and feature testers!

Screenshots:
Continue reading

Translators wanted

Translation support will be available on next phpipam release, code is being redone and final checks ongoing. I have decided to go with gettext, it seems to be the most suitable for phpipam.

Translating is straight-forward, by providing translations for strings, for example:

#: functions/functions-mail.php:176
msgid “your domain username”
msgstr “translated text”

There are many tools available to help with translation, like poedit and others.

If anyone is interested in providing translation, please contact me on email. I have already received some requests in the past, I will try to dig up old emails…

brm

phpIPAM installation on debian 6.0.6

I have received a request for help on manual installation of phpIPAM on debian linux, so I decided to write a small how-to if anyone else has problems or is not so familiar with linux distributions and environment. I have used fresh default debian 6.0 as distribution because it is widely used, I believe on ubuntu linux procedure should be very similar, except maybe for locations of some config files.

I have used the following settings for installation:

  • Fresh debian installation
  • MySQL server not yet installed and no root pass configured
  • Apache not installed and configured
  • phpipam will be installed in default directory (no vhosts) under /phpipam/ folder

If you already have MySQL/apache set you can skip point 3.

Installation procedure:
Continue reading

phpIPAM in freeBSD ports

I recently noticed that phpIPAM is available also through FreeBSD ports (Thanks to Jake Smith):

cd /usr/ports/net-mgmt/phpipam && make install clean

Check your package managers, if it is available on some other unix distros post it here for reference…

brm

phpIPAM version 0.7 released

Dear all, I am happy to announce new version of phpipam IP address management – version 0.7. It features completely redesigned UI based on Twitter’s bootstrap, less Javascript and more features. Many bugs have been squashed, features improved and it also brings lots of new features, amongst them:
subnet

  • Unlimited number of subnetting levels;
  • OpenLDAP authentication support;
  • Custom subnet and VLAN fields;
  • Show Subnet name instead of IP address;
  • Option to disable strict mode;

You can demo it here: http://demo.phpipam.net/
You can download it on sourceforge site: phpipam-0.7.

Be sure to read upgrade / install notes, because we moved to mod_rewrite apache mod, which requires the following changes:

  • Apache2 must have mod_rewrite support
  • “AllowOverride all” must be set in vhost config for mod_rewrite to work
  • Set BASE in config.php (if in root not needed, otherwise /phpipam/ or your own directory)
  • RewriteBase /BASE/ in .htaccess (same as above)

Special thanks to following donors:

  • Dicom Datautveckling AB
  • Tatung Baby
  • Suretec Systems Ltd.

Special thank also to Hosterdam team (http://www.hosterdam.com) for VPS server that is used for development of phpIPAM and for demo site. And also to all users that filed a bug report / feature report and helped with feature testing!

Screenshots:
Continue reading
